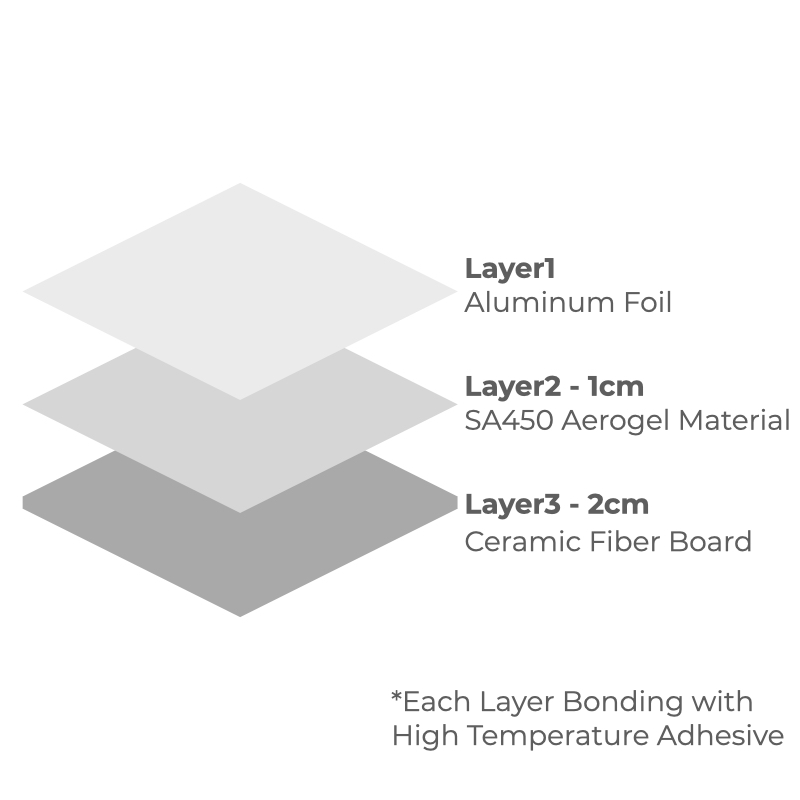

Sino-Aerogel SA450-AF: The surface of the Aerogel Panel is covered with aluminum foil by a special process, suitable for insulation of facilities and equipment. The SA450-AF can be sliced and processed according to provided drawings.
Recommended Working Temperature: ＞1000℃;
Applications: With excellent performance of Mid-temperature insulation, SA450 mainly apply to building insulation like architectural structure of wall, roof, floor. And medium and low temperature pipeline, equipment insulation and other fields.
| SA450 | SA450-AF | |||
| Unit | Value | |||
| Specifications | Thickness | mm | 30 | |
| Length | m | 44 | 44.8 | |
| Width | mm | 1600±5 | ||
| Color | White | |||
| Parameter | Density | kg/m3 | 170±15 | |
| Thermal Conductivity Coefficient @25℃ |
W/(m·K) | ≤0.018 | ||
| Thermal Conductivity Coefficient @200℃ |
W/(m·K) | 0.028 | ||
| Hydrophobic rate | % | ≥98% | ||
| Hydroscopicity rate | % | ≤5.0% | ||
| Combustion performance grade | A | |||
| Working Temp. | ℃ | ＞1000℃ | ||
| Others | Thickness can be customized. | |||
| Chloride ions | No | |||
